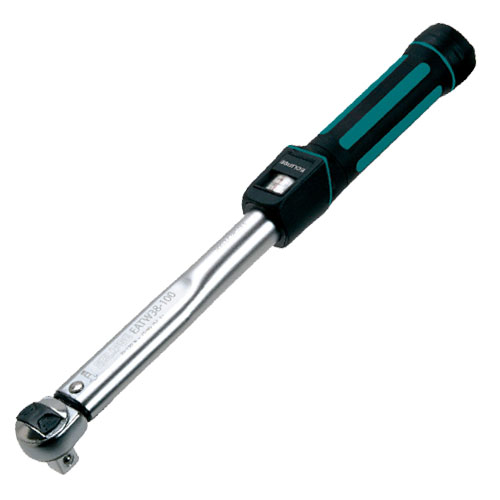

Automotive Torque Wrenches - with ratchet heads
Automotive Torque Wrenches - with ratchet heads
Features:
• Versatility: The reversible ratchet is designed with compact dimensions and a narrow engagement angle resulting from the 72 tooth pattern. This makes the wrench ideal for use in the confined spaces of modern motor vehicles and other applications where space is limited
• Accuracy: of +/- 3% exceeds all international standards for torque wrenches. Each wrench is supplied with a traceable calibration certificate
• Comfort & Safety: two component ergonomic handle for maximum comfort and slip resistance
• Durability: Handle material and lens resist chemicals in common usage in the automotive, aviation and industrial environments
• Safety: a robust lock prevents accidental adjustment of the wrench during use
Product Specifications:
| Model No. | Square Drive | Range N.m | Range Ibf.ft | Rachet Diameter(mm) | Engagements Per Revolution | Length | Weight |
|---|---|---|---|---|---|---|---|
| EATW38-60 | 3/8" | 8-60 | 5-45 | 31 | 72 | 307mm | 0.6kg |
| EATW12-60 | 1/2" | 8-60 | 5-45 | 31 | 72 | 307mm | 0.6kg |
| EATW38-100 | 3/8" | 20-100 | 15-80 | 31 | 72 | 347mm | 0.7kg |
| EATW12-100 | 1/2" | 20-100 | 15-80 | 31 | 72 | 347mm | 0.7kg |
| EATW12-200 | 1/2" | 40-200 | 30-150 | 41 | 72 | 443mm | 1.0kg |
