Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Heavy Duty Metal Working Clamp
Export:
Best Seller:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Extra products:
Function:
Features & Benefits:
Made from high quality Steel bar (30mm wide x 15mm thick)
Capable of 1200kgf clamping force
Heat treated Circular pressure clamping plate with a full ball type support can be tilted 35° to withstand heavy duty working and clamp awkward shaped work pieces
Hex design screw end for reinforcing clamping
Range available with 10", 12", 16", 20" & 24" clamping capabilities and 140mm throat depth
Ideal for heavy duty metal working and welding applications
Commerce Product:
Images:
New In:
Pack qty:
5
SKU:
EC-GS10
Made to order:
Type:
Eclipse Professional Tools
Range:

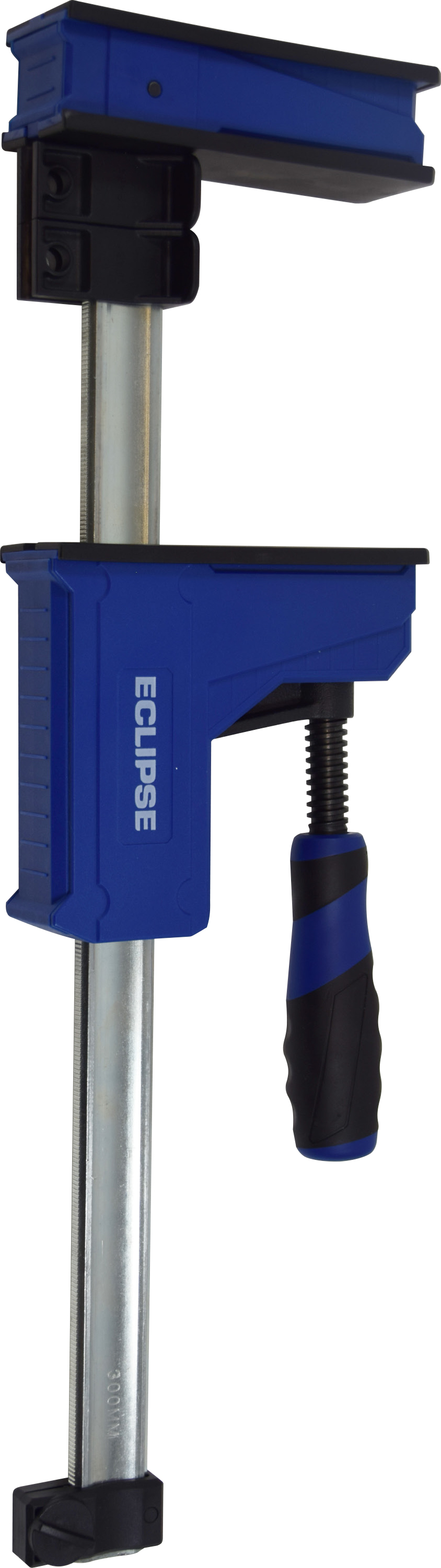

Quick Release Lever Clamps
Extra products:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Commerce Product:
Features & Benefits:
Lightweight aluminium body and carbon steel bar are strong and durable and can achieve a sustainable clamping force up to 180 Kgf
Feature a rapid clamping action with a quick release button that instantly releases the clamp
Ideal for gluing, positioning and fastening in wood working applications
The removable pads stay fixed to the clamp and have an additional toe in feature giving an even distribution of clamping force across the workpiece protecting it from marking damage
Images:
Best Seller:
Function:
Export:
Description:
Quick release lever clamps with rapid clamping and releasing action for medium duty wood working applications
Available in 80mm and 120mm Throat Depths
SKU:
ELC80-4
New In:
Range:
Specifications:
Body is manufactured from lightweight aluminium with a strong carbon steel bar
Made to order:
Type:
Eclipse Professional Tools
Videos:
Screw Clamps
Extra products:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Commerce Product:
Features & Benefits:
Cast iron heads and nickel plated steel bar offer maximum strength
80mm Throat depth models can achieve up to 250 kgf and 120mm Throat depth models up to 300 kgf of sustainable clamping force.
The sliding head quickly sets the clamp to the required capacity
Serrated grooves on the corrosion resistant nickel plated bar prevent slippage in use.
Traditional wooden handle provides a firm and comfortable grip.
The plastic pads snap fit to both the swivel shoe and the fixed head to provide an even distribution of clamping force across the workpiece protecting it from marking damage
Images:
Best Seller:
Function:
Export:
Description:
Screw clamps manufactured to DIN5117 standards for medium to heavy duty wood working applications
Available in 80mm and 120mm Throat Depths
SKU:
EC-SC80R6
New In:
Range:
Specifications:
Fixed and movable heads are manufactured from cast iron
Corrosion resistant nickel plated steel bar
Made to order:
Type:
Eclipse Professional Tools
Videos:
One Handed Bar Clamps
Extra products:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Commerce Product:
Features & Benefits:
Carbon steel bar and reinforced nylon body for strength and durability and can achieve a sustainable clamping force up to 150 Kgf
Ideal for medium duty clamping and temporary hold down work.
The quick release insert trigger enables the clamps to be quickly positioned and released.
Easy push button system allows a quick change from a clamp to a spreader
Ergonomically designed soft feel pistol grip handle is comfortable to use
The removable pads stay fixed to the clamp and have an additional toe in feature giving an even distribution of clamping force across the workpiece protecting it from marking damage
Images:
Best Seller:
Function:
Export:
Description:
A range of one handed bar clamps and spreaders for a variety of medium duty wood working applications.
SKU:
EOHBC6
New In:
Range:
Specifications:
Body is manufactured from reinforced nylon with a carbon steel bar
Throat Depth: 85mm (3 3/8")
Made to order:
Type:
Eclipse Professional Tools
Videos:
Mini and Micro One Handed Bar Clamps
Extra products:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Commerce Product:
Features & Benefits:
Carbon steel bar and reinforced nylon body for strength and durability
Mini clamps can achieve up to 75 kgf and Micro clamps up to 25 Kgf of clamping force
The quick release insert trigger enables the clamps to be quickly positioned and released.
Ideal for craft and light duty wood working projects, delicate work requiring light pressure and for work in confined spaces
Mini clamp has an easy push button system allowing a quick change fro a clamp to a spreader
Ergonomically designed soft feel pistol grip handle is comfortable to use
The removable pads stay fixed to the clamp and have an additional toe in feature giving an even distribution of clamping force across the workpiece protecting it from marking damage
Images:
Best Seller:
Function:
Export:
Description:
Mini and micro one handed bar clamps for a variety of light and medium duty wood working applications
SKU:
EOHBC6-MINI
New In:
Range:
Specifications:
Body is manufactured from strong plastic construction with a carbon steel bar
Mini Clamp Throat Depth: 60mm (2 3/8")
Micro Clamp Throat Depth: 36mm (1 3/8")
Made to order:
Type:
Eclipse Professional Tools
Sash Clamps
Extra products:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Commerce Product:
Features & Benefits:
Steel bar offers maximum tensile and yield strength and can achieve an average clamping force of up to 500kg
The ductile head and slide are guaranteed unbreakable
Tommy bar will bend before the clamp becomes over stressed
Twin start rolled acme thread applies pressure quickly and smoothly to the workpiece
Flat bottomed head and slide so that the clamp can stand without support
The slightly tapered jaws enable perfectly parallel clamping
Slide secured by a solid steel pin passing through one of the location holes spaced along the steel bar
Ideal for clamping large and heavy pieces of furniture and wood when gluing
Images:
Best Seller:
Function:
Export:
Description:
A range of Sash clamps for a wide range of wood working applications including gluing of large pieces of wood and furniture
Replacement tail slide, peg and chain available
SKU:
ESC24
New In:
Range:
Specifications:
Manufactured from a strong steel bar fitted with a ductile iron head and slide
Made to order:
Type:
Eclipse Professional Tools
Videos:
Heavy Duty One Handed Bar Clamps
Extra products:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Commerce Product:
Features & Benefits:
Lightweight aluminium body and carbon steel bar are strong and durable and can achieve a clamping force up to 300 kgf
Ideal for heavy duty work holding applications such as installation and demolition
The quick release insert trigger enables the clamps to be quickly positioned and released.
Ergonomically designed soft feel pistol grip handle is comfortable to use
Easy push button system allows a quick change from a clamp to a spreader
The removable pads stay fixed to the clamp giving an even distribution of clamping force across the workpiece protecting it from marking damage
Images:
Best Seller:
Function:
Export:
Description:
High quality aluminium heavy duty one handed bar clamps and spreaders for a variety of wood working applications.
SKU:
EOHBC6-HD
New In:
Range:
Specifications:
Body is manufactured from aluminium with a carbon steel bar
Throat Depth: 85mm (3 3/8")
Made to order:
Type:
Eclipse Professional Tools
Videos:
T Bar Clamps
Extra products:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Commerce Product:
Features & Benefits:
Steel T Bar offers maximum tensile and yield strength and resists twisting under high clamping pressure and can achieve an average clamping force of up to 1000 Kgf
The ductile head and slide are guaranteed unbreakable
Tommy bar will bend before the clamp becomes over stressed
Twin start rolled acme thread applies pressure quickly and smoothly to the workpiece
The drilled feet in the fixed head enable the clamp to be mounte to a workbench
The slightly tapered jaws enable perfectly parallel clamping
Slide secured by a solid steel pin passing through one of the location holes spaced along the steel bar
Ideal for clamping large and heavy pieces of furniture and wood when gluing
Images:
Best Seller:
Function:
Export:
Description:
A range of T Bar clamps for a wide range of wood working applications including gluing of large pieces of wood and furniture
Replacement tail slide, peg and chain available
SKU:
ETBR42
New In:
Range:
Specifications:
Manufactured from a rigid "T" bar section steel bar fitted with a ductile iron head and slide
Made to order:
Type:
Eclipse Professional Tools
G Clamps
Extra products:
Category:
Clamps
Image:
Related Product Type:
Eclipse Professional Tools
Range to display image on:
Commerce Product:
Features & Benefits:
Guaranteed unbreakable ductile iron frame can achieve a clamping force up to 450 - 1136 Kgf depending on the size
Tommy bar will bend before the clamp becomes over stressed
Twin start rolled acme thread applies pressure quickly and smoothly to the workpiece
The steel swivel shoe applies an even pressure even on angled surfaces
Ideal for medium to heavy duty wood and metal working applications
Images:
Best Seller:
Function:
Export:
Description:
A range of high quality G Clamps manufactured from ductile iron for heavy duty wood and metal working applications
SKU:
E20-3
New In:
Range:
Specifications:
Manufactured from ductile iron with a twin start rolled acme thread and steel swivel shoe
Tommy bar is made from high quality steel.
Made to order:
Type:
Eclipse Professional Tools
